83.2V 405Ah Low Voltage Boom Lift Power Battery Pack

people are viewing this right now

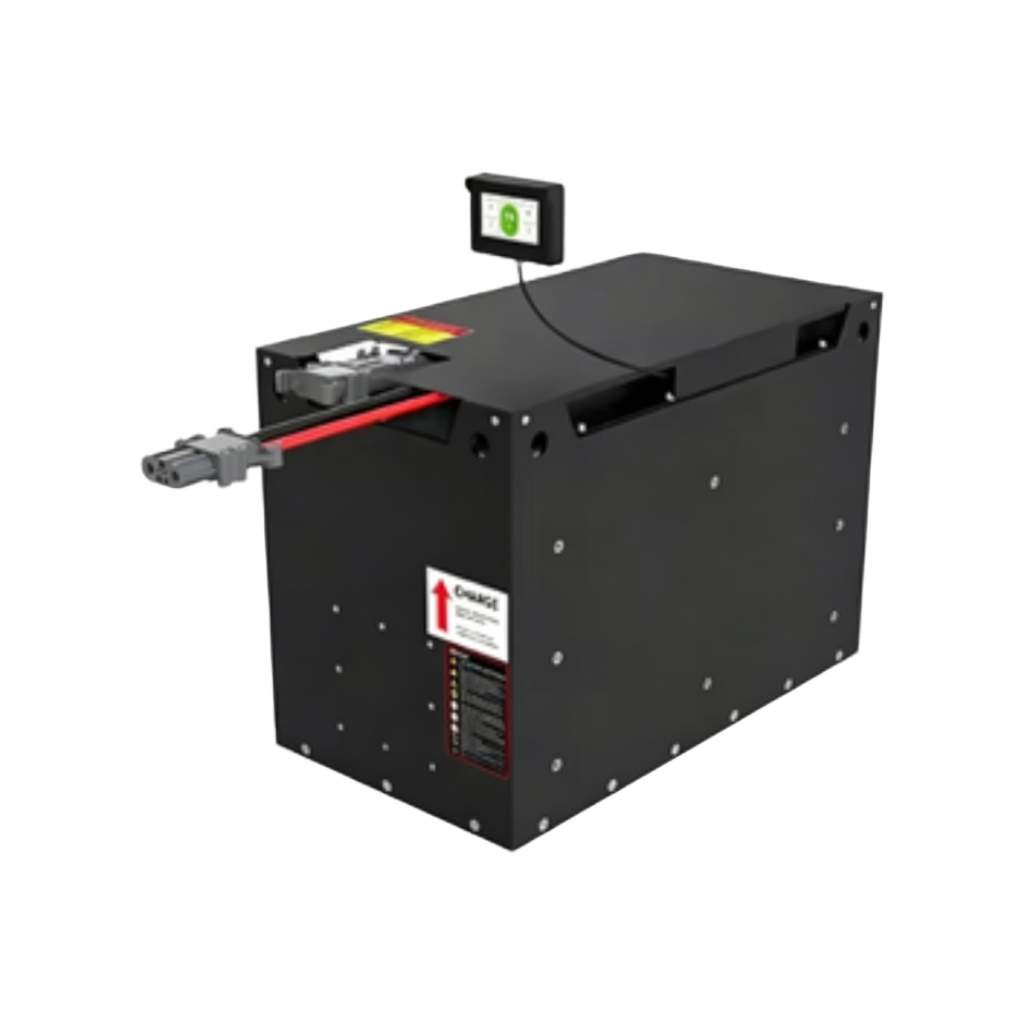

83.2V 405Ah LiFePO4 battery for low voltage boom lift aerial work platforms

Image Checkout
Categories: ,

The 83.2V 405Ah lithium iron phosphate battery pack is tailor-made for low-voltage boom lifts deployed in construction sites and facility maintenance projects. It provides sustained power supply to support travelling, lifting and rotational operations during prolonged aerial work cycles.

Integrated with high-performance LiFePO4 cells and upgraded intelligent BMS, the battery handles variable load conditions and frequent power surges encountered in daily engineering work. Compared with traditional lead-acid batteries, it boasts higher usable capacity, reduced overall weight and ultra-low self-discharge rate without routine watering maintenance.

Heavy-duty sealed housing enhances vibration and impact tolerance, adapting to complex outdoor working conditions. Multiple layers of safety protection including overcharge, deep discharge, overload and short-circuit prevention safeguard both battery unit and aerial equipment. This power pack acts as an excellent replacement option for various articulated and telescopic low-voltage boom lift models.

ERP Specifications

G13H

Model

26 meters

Nominal Voltage

83.2V

Nominal Capacity

405Ah

Rated Energy

33.6kWh

Operating Voltage

65V~94.9V

Standard Charging Current

60A

Standard Discharging Current

405A

Peak Discharging Current

810A(30s)

Charging Temperature Range

0℃~55℃

Discharging Temperature Range

-20℃~55℃

Cycle Life

>3000 Cycles

Communication

Can/4G

Warranty

5years

Dimensions (L×W×H)

1083mm*626mm*432mm

Weight

350Kg

Ingress Protection Rating

IP67
