83.2V 500Ah Low Voltage Boom Lift Power Battery Pack

people are viewing this right now

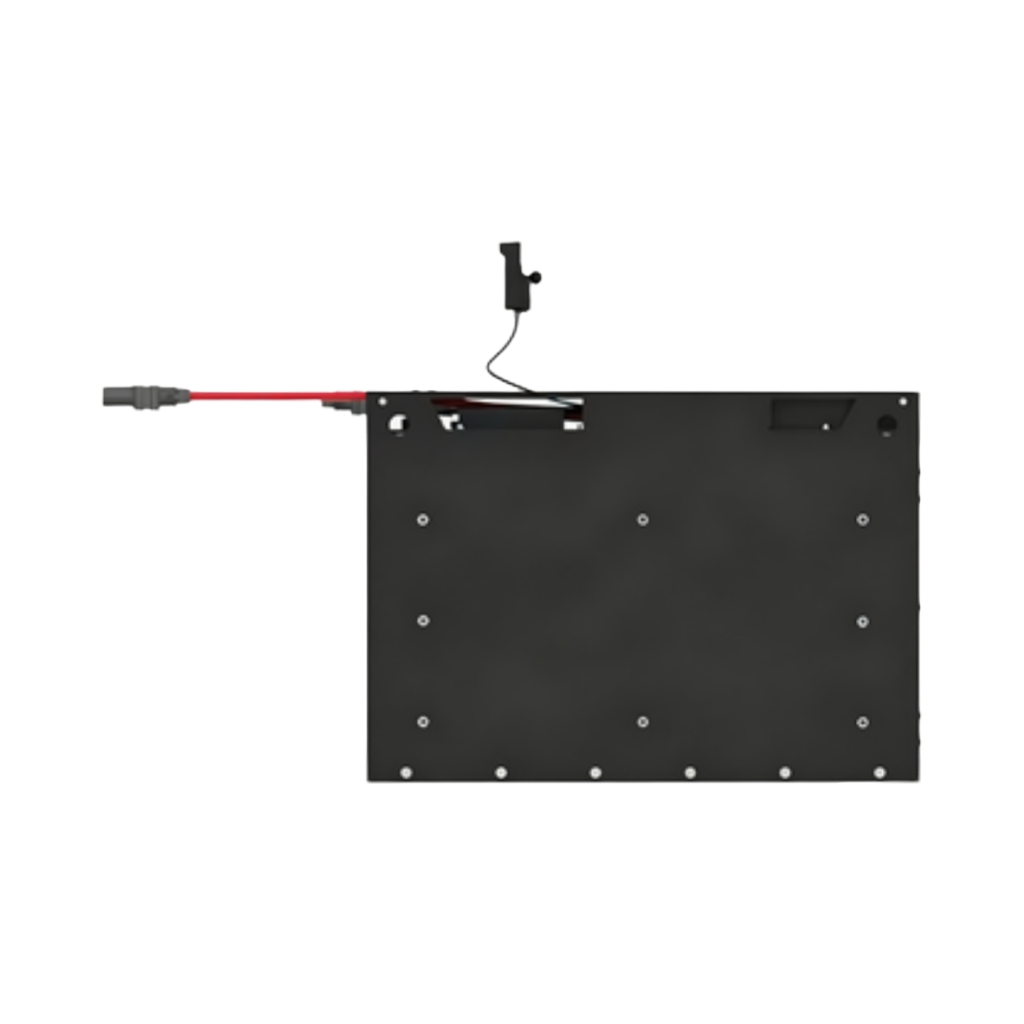

83.2V 500Ah LiFePO4 power pack for low-voltage aerial boom lift machines

Image Checkout
Categories: ,

This 83.2V 500Ah lithium iron phosphate battery pack is engineered exclusively for low-voltage boom lifts used in building construction, factory upkeep and municipal engineering. The large-capacity design delivers long-lasting power to support continuous driving, lifting and rotating operations for extended working shifts.
Adopting top-grade LiFePO4 cells and sophisticated built-in BMS, the battery stably copes with variable power loads and frequent startup conditions on job sites. It outperforms conventional lead-acid batteries with greater endurance, lighter weight, longer service cycles and complete freedom from regular maintenance work.
Reinforced sealed enclosure improves anti-vibration and dustproof capability to fit outdoor harsh operating scenarios. Complete protection against overcharging, overdischarging, overcurrent and short circuits effectively lowers operational risks. It is a premium retrofit power solution compatible with diverse low-voltage articulated and telescopic boom lift models.

ERP Specifications

G18006B

Model

28 meters

Nominal Voltage

83.2V

Nominal Capacity

500Ah

Rated Energy

41.6kWh

Operating Voltage

65V~94.9V

Standard Charging Current

60A

Standard Discharging Current

500A

Peak Discharging Current

1000A(30s)

Charging Temperature Range

0℃~55℃

Discharging Temperature Range

-20℃~55℃

Cycle Life

>3000 Cycles

Communication

Can/4G

Warranty

5years

Dimensions (L×W×H)

1081mm*636mm*451mm

Weight

430Kg

Ingress Protection Rating

IP67
